FBC Cable Processing Machine

Integrated with the FBC Laser Wire Stripper to provide total support for cable processing.

FURUKAWA BUSSAN CO.,LTD. > Machine Manufacturing Business > FBC Laser Processing Machines | Machine Manufacturing Business > FBC Cable Processing Machine | Machine Manufacturing Business

Advanced Jacket Stripper

AJS-100

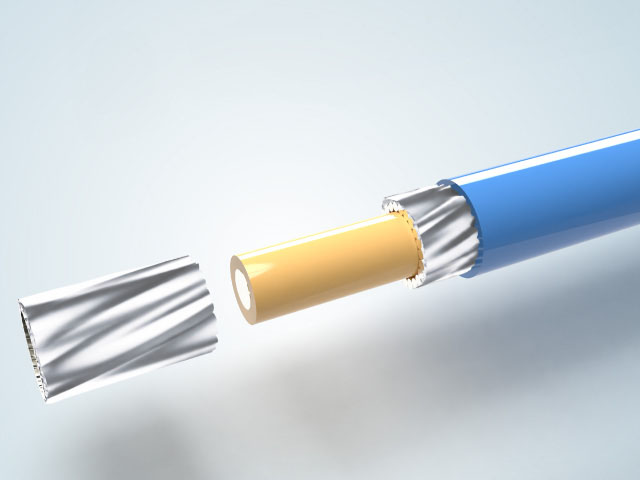

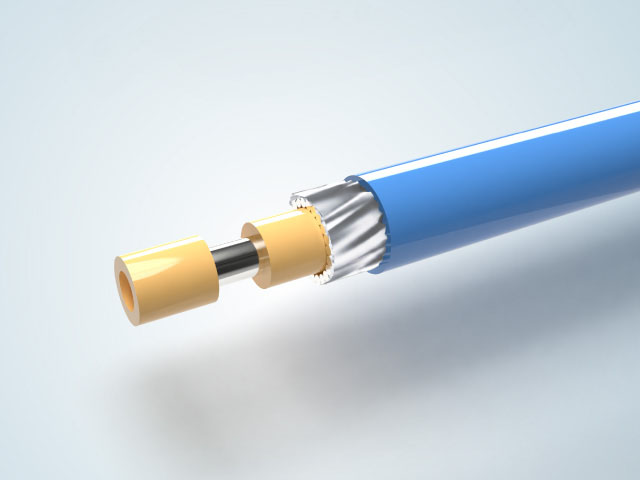

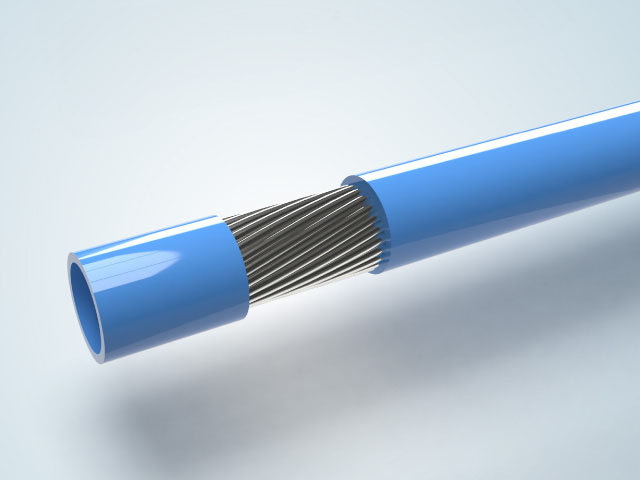

Reliable Removal of Outer Jackets, Inner Dielectrics, and Metal Foil Shields After Laser Processing

Depending on the cable characteristics, either a rubber clamp or a blade clamp can be selected to ensure stable stripping, even for cables that are difficult to process manually or with conventional stripping tools.

  • Numeric control of clamping force, stripping speed, and other processing parameters with recipe management
  • Effectively strips low-friction jackets and tightly bonded insulation materials
  • Supports both full stripping and semi-stripping; stripped material is collected by a dust collection system
  • Rubber and blade clamps can be exchanged quickly without fine adjustment

Advanced Shield Stripper

ASS-100

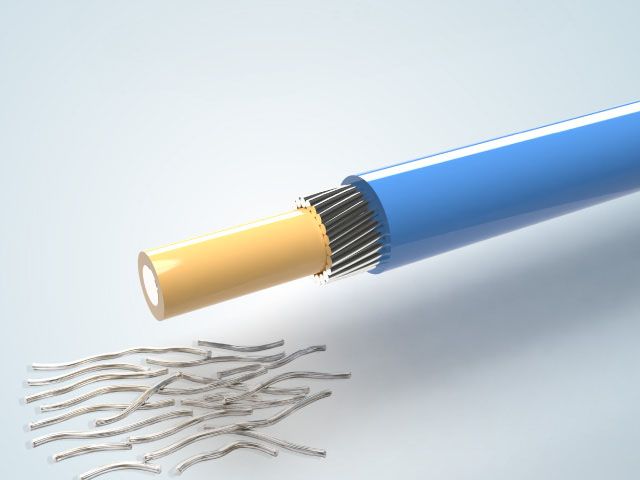

Stripping Pre-Soldered Braided and Serve-Shielded Wires After Laser Processing

Pre-soldered braided shield wires are bent upward and downward at the laser processing position, then clamped and stripped. For serve-shielded wires, the shield is bent upward and downward using a rotating brush and then brushed off.

  • Bending angle, clamping pressure, and brushing conditions can be numerically controlled according to cable characteristics.
  • Stripped shield material is automatically collected by a dust collection system
  • Processes multiple cables simultaneously within a 100 mm effective processing area

Advanced Soldering Machine

ASM-100

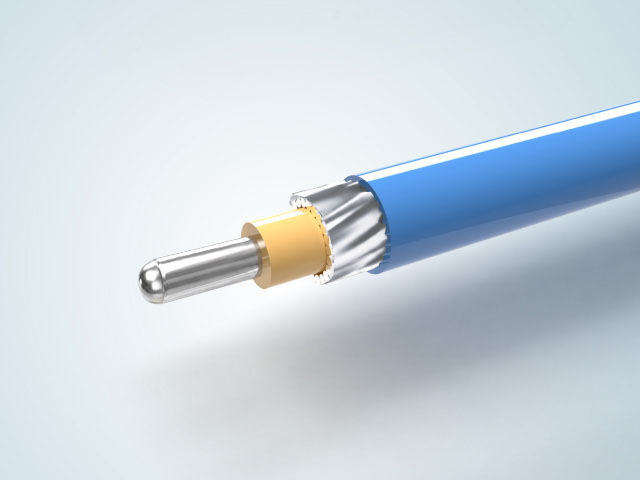

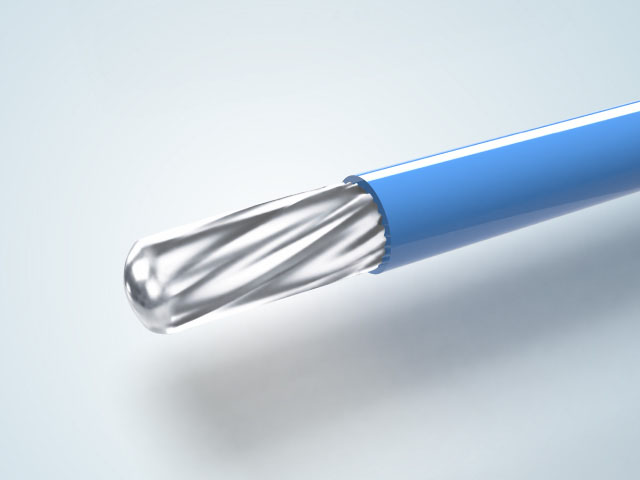

Provides consistent, high-quality pre-soldering of cable conductors using a solder bath immersion process.

The system delivers reliable pre-soldering for shield wires, center conductors, and metal foil shields. Key process parameters—including immersion depth, immersion speed, and dwell time—are digitally controlled and managed through programmable recipes.

  • Reliable pre-soldering all the way to the base of shield wires and center conductors
  • Precise control of solder coating thickness
  • Continuous monitoring of solder temperature and solder level to ensure stable pre-soldering quality
  • Flux and solder baths are equipped with safety shutters that automatically close in the event of an earthquake

Advanced Wire Cutter

AWC-100

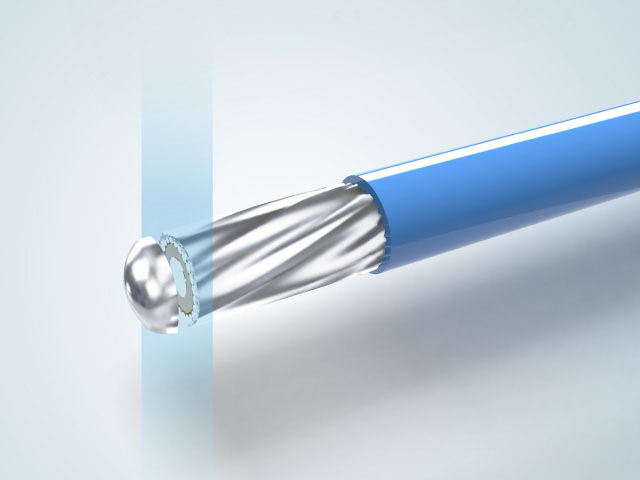

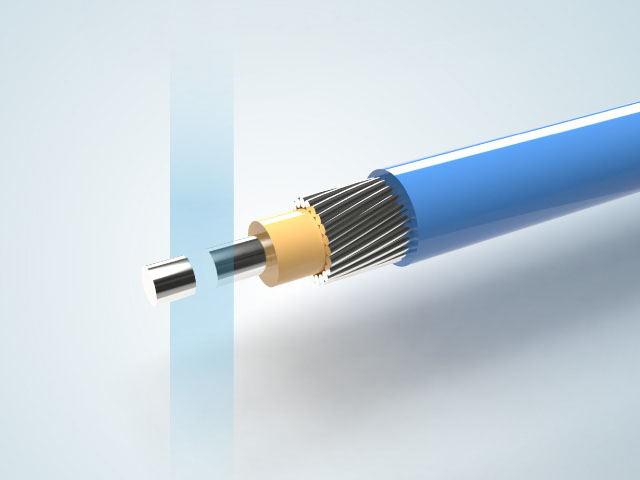

Delivers high-precision conductor cutting with a rigid, durable shearing mechanism.

Delivers high-precision conductor cutting with a rigid, durable shearing mechanism.

Sharing the same positioning reference as other FBC stripping systems, it ensures highly accurate conductor trimming for consistent finished dimensions.

  • Clean, sharp conductor cutting without deformation using a precision shearing mechanism
  • High-rigidity, long-life shearing blades provide extended maintenance-free operation
  • Safety features include two-hand operation and a blade-change safety interlock

Experience FBC Technology at Our Yokohama Lab

You are welcome to visit our Yokohama Lab to see the FBC Laser Wire Stripper and related equipment in operation.

If you would like us to process your samples, please send them to us in advance. Our engineers will determine the optimum processing conditions before your visit.

As developing the processing parameters requires time, we kindly ask that you refrain from requesting first-time sample processing on the day of your visit.

Location :

FBC Yokohama Lab
Iida Building, 3-50 Tobe-cho, Nishi-ku, Yokohama, Kanagawa, Japan
