Wire Braiding Machine
We handle Kyoritsu brand Wire Braiding Machines manufactured by Kyoritsu Co., Ltd. Carriers and replacement parts are also available for sale.
A Wire Braiding Machine is designed to braid metal wires, resin wires, yarns, and other materials around a core material to form a tubular structure. This process provides products such as hoses and electrical wires with reinforcement and shielding functions. Wire Braiding Machines are widely used in the manufacturing of products for various industries, including automotive, wire and cable, medical equipment, and consumer goods.
There are two major types of Wire Braiding Machines: Maypole-type machines, which support a wide variety of braiding patterns, and rotary-type machines, which are designed for high-speed braiding. The appropriate machine type is selected according to the intended application and production requirements.
Kyoritsu Co., Ltd. is Japan’s leading manufacturer of high-speed rotary-type Wire Braiding Machines, providing braiding technologies and equipment to meet a wide range of applications.
Main Applications
Wire Braiding Machines are widely used across various industries, including automotive, wire and cable, industrial machinery, medical equipment, and consumer products.
Compatible Materials
Metal Materials
Copper / Tin-plated copper / Stainless steel / Tungsten / Nickel-titanium alloy, etc.
Fiber Materials
Nylon / Polyester / Glass fiber / Aramid fiber, etc.
Material Shapes
Round wire (single or multiple wires) / Flat wire
Wire Braiding Machine Series
Four series are available to meet different applications and product sizes.

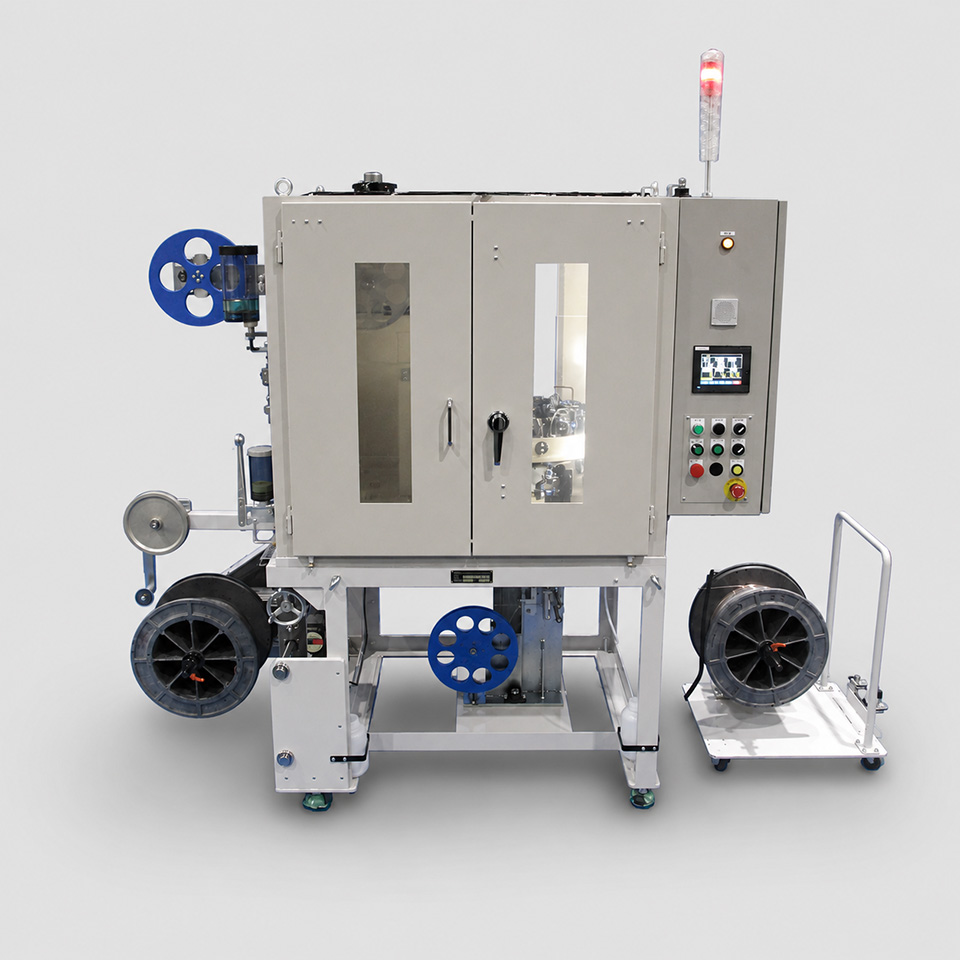

01. MF | Fine / Micro Applications
|
Applications |
Micro-coaxial cables / Medical microcatheters / Guiding catheters |
|---|---|
|
Applicable Carriers (Wire Tension) |
NFBRD (7-35 cN / 20-90 cN) |
|
Braiding Bobbin Dimensions |
Flange diameter: Ø55 mm |
16MF
Ø0.03 – 0.08 mm
(0.0012″ – 0.0032″)
Flat wire
(Max. 0.04″)
(960 picks/min.)
16MFS-FXII
Ø0.01 – 0.06 mm
(0.0004″ – 0.0024″)
Flat wire
(0.016 – 0.04″)
(960 picks/min.)
24MF/24MFS
Ø0.03 – 0.08 mm
(0.0012″ – 0.0032″)
Flat wire
(0.04 – 0.12″)
(680 pick/min.)
- The values shown are reference values based on actual results. The applicable range may vary depending on the specifications.

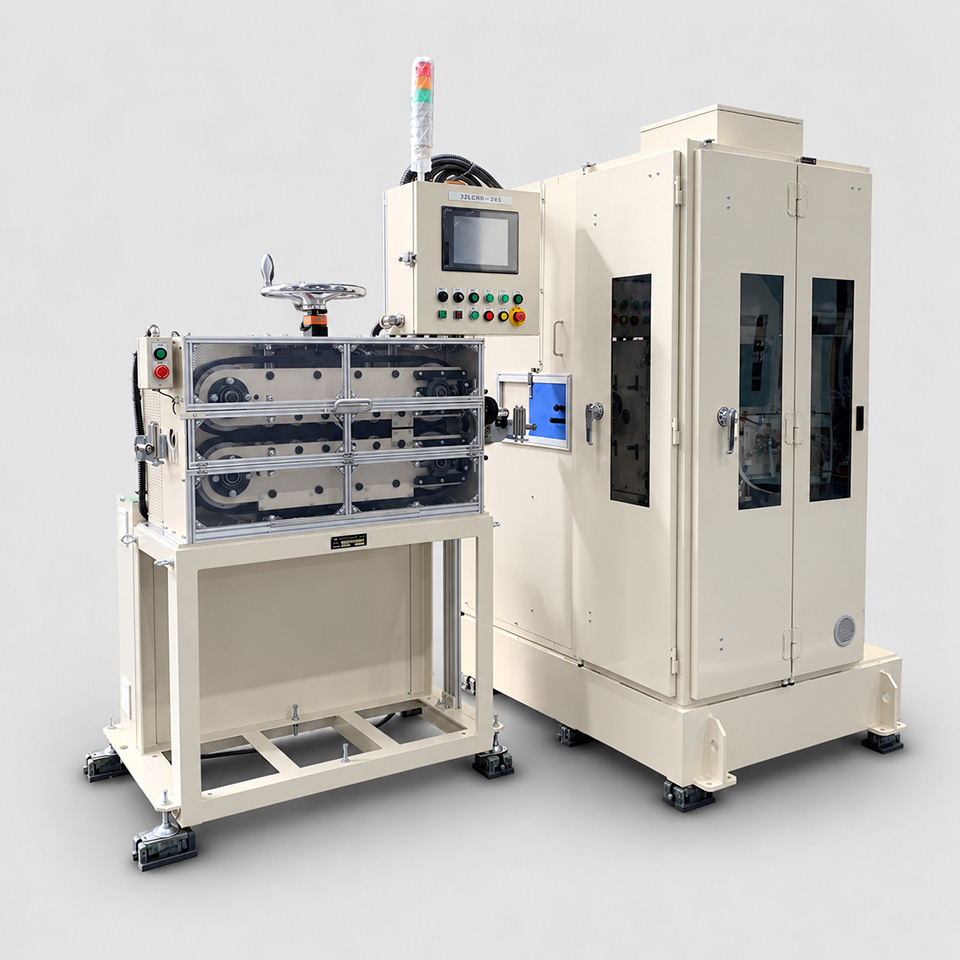

02. LCR | General-Purpose
|
Applications |
Coaxial cables / Supercomputer cables / Communication cables / Factory automation (FA) robot cables / Electric vehicle power cables / Compensating conductors / Instrumentation cables / Heat-resistant cables / Medical catheters / Endoscope cables / Rubber brake hoses / Automotive fuel hoses / Power steering hoses / Small-diameter rubber hoses / Gas hoses / Radiator hoses, etc. |
|---|---|
|
Applicable Carriers (Wire Tension) |
GCR (40-150 cN) |
|
Braiding Bobbin Dimensions |
Flange diameter: Ø78 mm |
16LCR
Ø0.05 – 0.14 mm
(0.002″ – 0.0056″)
Flat wire
(Max. 0.4″)
(960 picks/min.)
16LCR-FXII
Ø0.03 – 0.12 mm
(0.0012″ – 0.0048″)
Flat wire
(0.04 – 0.12″)
(960 picks/min.)
24LCR
Ø0.08 – 0.16 mm
(0.0032″ – 0.0064″)
Flat wire
(Max. 0.4″/0.8″ approx.)
(680 picks/min.)
24LCRH (Horizontal Type)
1000 – 1500D
(1″ approx.)
(680 picks/min.)
32LCR
Ø0.08 – 0.16 mm
(0.0032″ – 0.0064″)
1000 – 1500D
(0.8″/1.6″ approx.)
(480 picks/min.)
32LCRH (Horizontal Type)
Ø0.05 – 0.10 mm
(0.002″ – 0.004″)
1000 – 1500D
(2.4″/0.4″ approx.)
(480 picks/min.)
48LCR
Ø0.08 – 0.16 mm
(0.0032″ – 0.0064″)
(1.2″ approx.)
(320 pick/min.)
48LCRH (Horizontal Type)
1000 – 1500D
(3.6″ approx.)
(320 pick/min.)
- The values shown are reference values based on actual results. The applicable range may vary depending on the specifications.

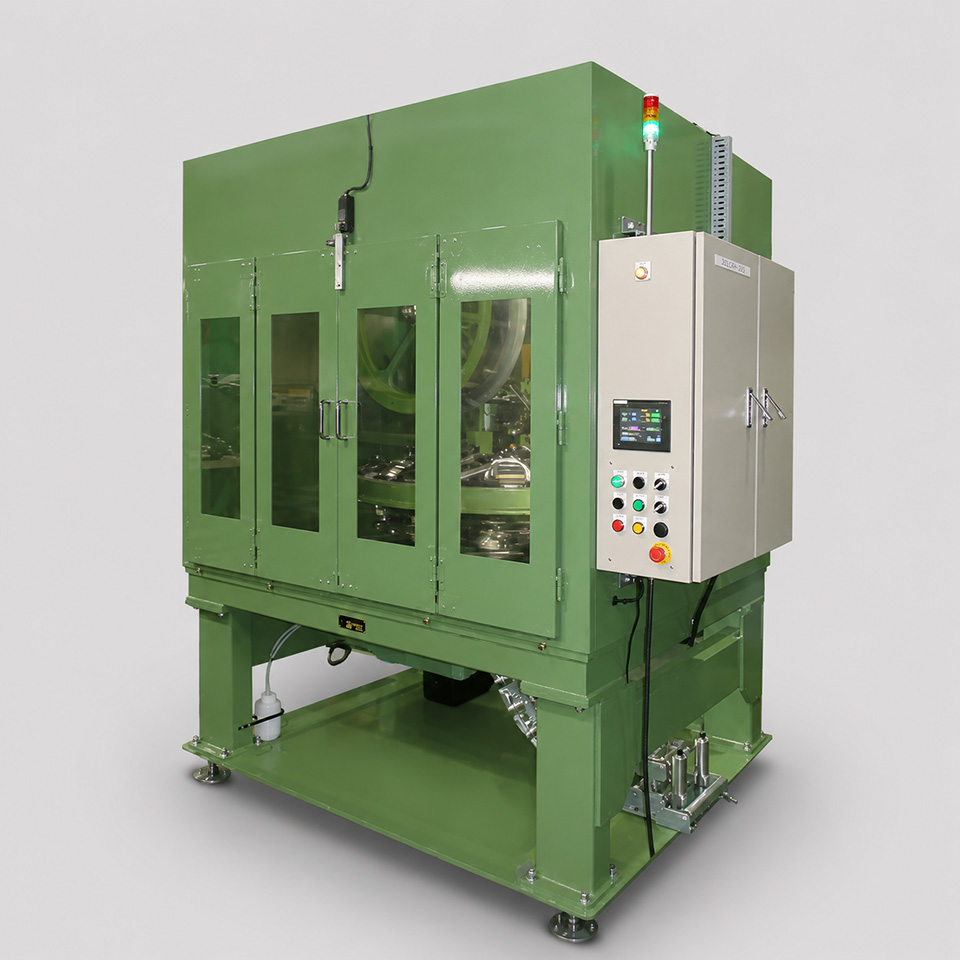

03. DLB | Medium Size
|
Applications |
Large-diameter cables, long cables, steel/stainless steel wire armored cables, high-pressure hydraulic hoses |
|---|---|
|
Applicable Carriers (Wire Tension) |
TDM (300-1000cN / 350-1400cN / 650-3500cN) |
|
Braiding Bobbin Dimensions |
Flange diameter: Ø100 mm |
24DLB
Ø0.08 – 0.16 mm
(0.0032″ – 0.0064″)
Flat wire
(1″ approx.)
(520 pick/min.)
32DLB
1500 – 2500D
(Max. 1.6″)
(440 picks/min.)
32DLBH (Horizontal Type)
1500 – 2500D
(Max. 1.6″)
(440 picks/min.)
- The values shown are reference values based on actual results. The applicable range may vary depending on the specifications.

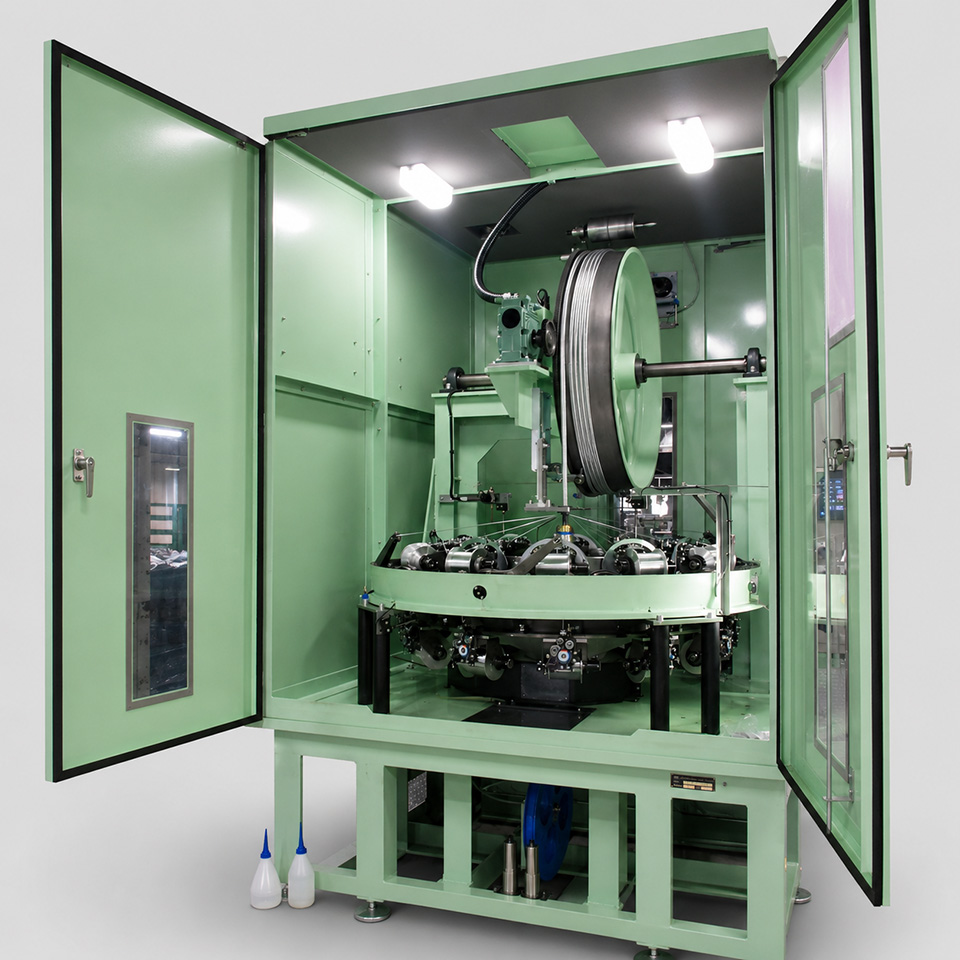

04. HCR | Large Size/High-Tension
|
Applications |
Large-diameter, long-length cables / Armored cables / Submarine cables / Industrial rubber hoses / Hydraulic hoses |
|---|---|
|
Applicable Carriers (Wire Tension) |
TDH (300-1000cN / 350-1400cN / 650-3500cN) |
|
Braiding Bobbin Dimensions |
Flange diameter: Ø116 mm |
16HCR
Ø0.10 – 0.30 mm
(0.0040″ – 0.012″)
(Max. 1″)
(520 picks/min.)
24HCR
Ø0.10 – 0.30 mm
(0.0040″ – 0.012″)
(Max. 1.2″)
(360 picks/min.)
24HCRH (Horizontal Type)
1500 – 2500D
(1.2″ approx.)
(360 picks/min.)
- The values shown are reference values based on actual results. The applicable range may vary depending on the specifications.

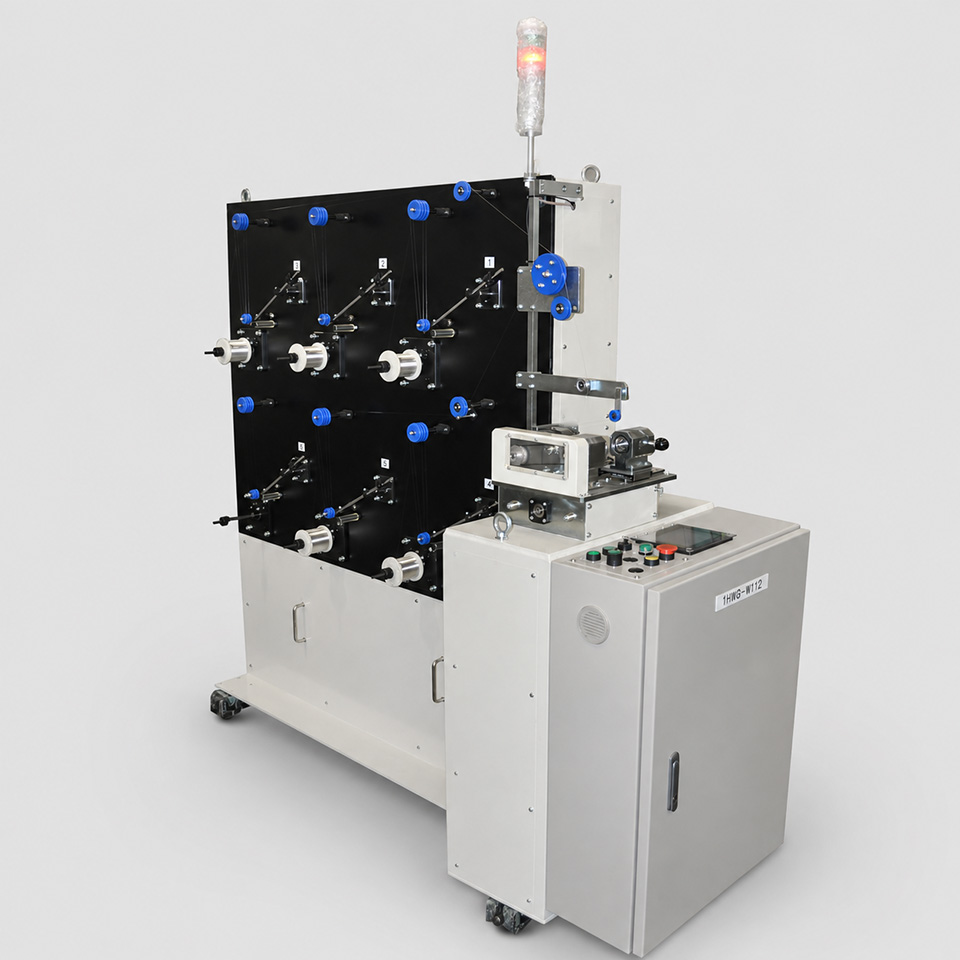

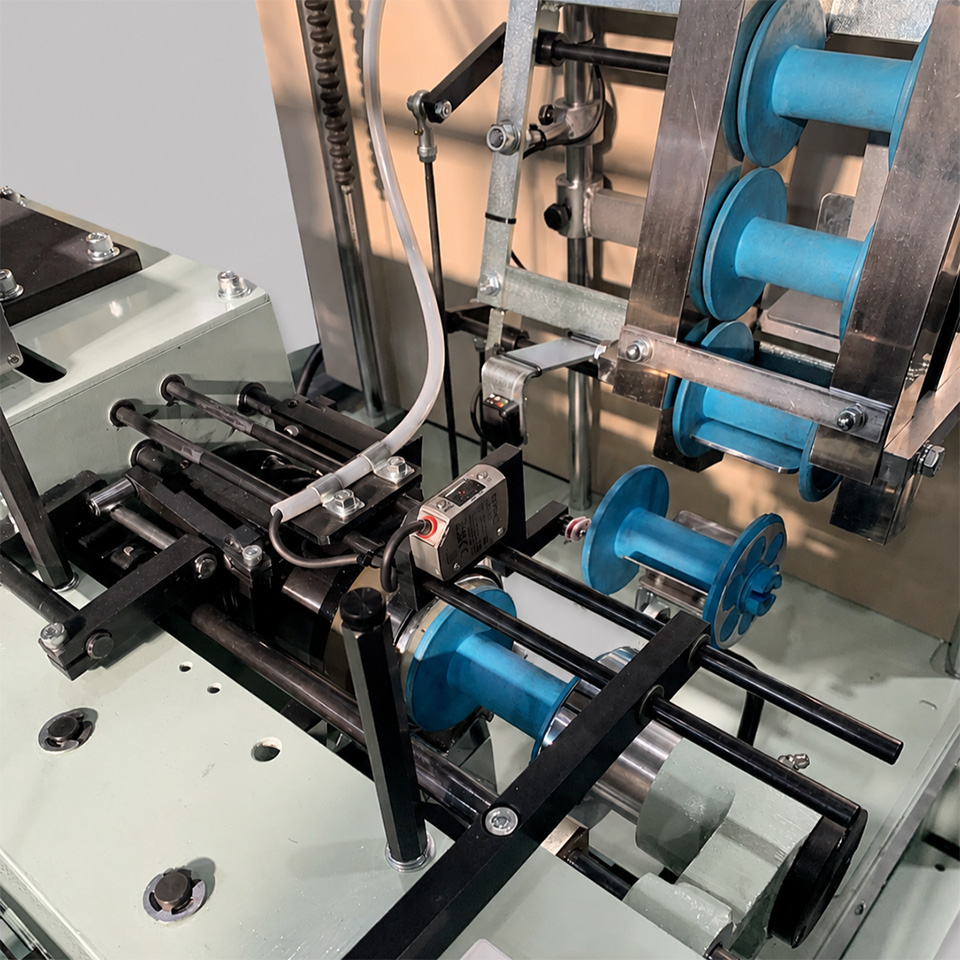

Rewinding Machine / Winder
A rewinding machine is used to unwind braiding materials at a constant tension and wind them onto bobbins. Consistent winding quality is essential for achieving stable performance in the subsequent braiding process. Both manual and automatic types are available.
Features
Lineup
Various types are available depending on the type of winding bobbin, number of winding heads, traverse method (wire/bobbin), material, and number of supply wires. The following are examples of automatic and manual types.
Automatic Winder
|
1A2SPWb |
1 winding bobbin / Available for electrical wires and rubber hoses / Compatible with LCR bobbins / Bobbin storage capacity: approx. 25-30 bobbins |
|---|---|
|
1A3SPWb |
1 winding bobbin / For electrical wires / Compatible with LCR bobbins / Bobbin storage capacity: approx. 100 bobbins |
Manual Winder
|
1VW |
1 winding bobbin / Wire traverse / For electrical wire manufacturing and rubber hose fiber yarns |
|---|---|
|
2VWS |
2 winding bobbins / Wire traverse / For electrical wire manufacturing and rubber hose fiber yarns |
|
1HW |
1 winding bobbin / Bobbin traverse / For ultra-fine electrical wires, medical SUS wires, tungsten wires, and fiber yarns |
|
2HWS |
2 winding bobbins / Bobbin traverse / For ultra-fine electrical wires, medical SUS wires, tungsten wires, and fiber yarns |
