Shield Stripper

LASER HARNESS PROCESSING MACHINES

Shield Stripper

(SS Series)

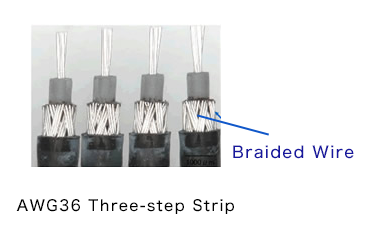

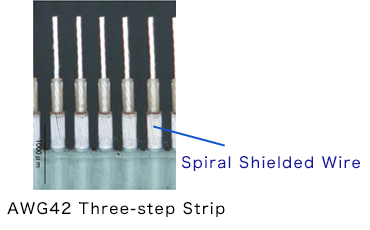

The laser-cut shield wire
can be removed neatly

Main Specifications of Shield Stripper

Completely brush off Laser-Cut shielded wires with rotary brushes.

Brush off shielded wires cut by Laser Shield Cutter (SC Series) with rotary plastic brushes

Model		SS-BV
Effective processing range		X-axis 10mm (manual) Y-axis 85 mm
Stroke		X-axis 10 mm Y-axis 200 mm
Max. movement speed		X-axis (manual) Y-axis 300 mm/sec.
Dimensions	Width	243mm
	Depth	462mm
	Height	344mm
Machine weight		Approx. 20 kg
Power specifications		Single phase 50/60 Hz 100 to 230 V Power consumption 50 W

SS-BV

・Effective processing range

X-axis 10mm (manual)
Y-axis 85 mm

・Stroke

X-axis 10 mm
Y-axis 200 mm

・Max. movement speed

X-axis (manual)
Y-axis 300 mm/sec.

・Dimensions

Width：243mm
Depth：462mm
Height：344mm

・Machine weight

Approx. 20 kg

・Power specifications

Single phase 50/60 Hz 100 to 230 V Power consumption 50 W

Demo equipment viewing

Viewing demo equipment is possible.
To request viewing, inquire through the website with the requested date, time, and number of people.

Location of demo equipment: FURUKAWA BUSSAN CO., LTD. YOKOHAMA LAB. (Iida Bldg. 1F, No.50, Tobecho 3-chome, Nishi-ku, Yokohama City, Kanagawa, Japan)
